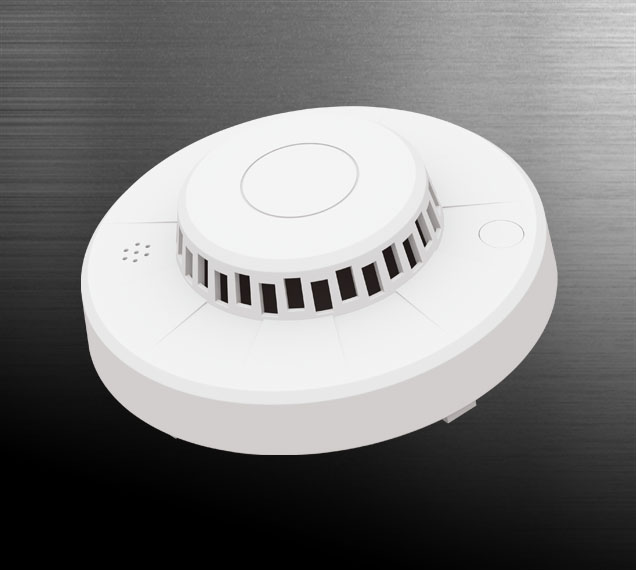

SK-ZN13 Wireless smoke detector
- Function Features
- Technical Reference
- Schematic Diagram
- Download
• Fast-sensing photoelectric sensor: stable and reliable, sensitive draft, quick alarm in the bud stage of fire
• Preferable flame retardant PVC high-strength environmental protection material, high temperature resistance and not easy to burn, excellent electrical performance, beautiful and practical
• Ultra-low power consumption, power saving, standby time is about 1 year
• Easy installation: wireless design to avoid wiring trouble
• Adopt LoRa wireless communication technology, with ultra-long distance transmission, strong anti-worry ability, ultra-low power consumption
● Rated voltage: DC9V
● Static current: ≤10uA
● Alarm current: ≤100mA
● Alarm sound pressure:> 80dB / 3m
● Working environment temperature: -10 ℃ ~ 50 ℃
● Ambient humidity: ≤95% RH
● Installation: ceiling
● Monitoring area: 20m2
● Indicator frequency: flash once every 40 seconds
● Output form: 1. Sound and light alarm 2. Wireless transmission network alarm
● Sensor type: infrared photocell
● Executive standard: GB20517-2006
● Wireless mode: 433MHz (LORA optional)
● Communication distance: 100m / 1000m (open)
