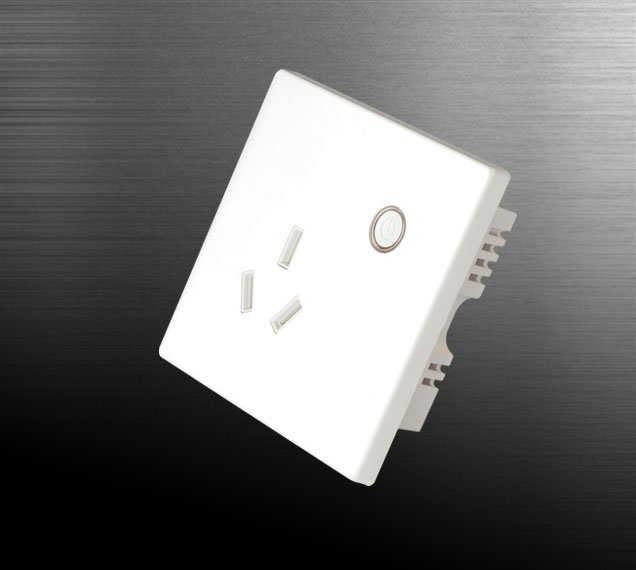

SK-ZN02A-16 Smart Socket (Type 86)
- Function Features
- Technical Reference
- Schematic Diagram
- Download
● Interchangeable with the traditional national standard 86 socket, no need to cut the wall, just install and use
● Efficient use of electricity, timely closing of high energy consumption appliances, energy saving
● Smart socket can be turned on / off manually / host / APP in multiple ways to manage the power supply of whole house appliances
● Smart timing on, timing off
● Voltage range: Working voltage: AC85 ~ 260V; Rated voltage: AC220V / 50Hz
● Maximum current: 16A
● Maximum load: 3500W (resistive)
● Standby power consumption: ≤0.5W
● Shell material: PC fireproof (V0 level)
● Implementation standard: GB2099.1 GB1002
● Communication mode: LORA dual-channel standard protocol
● Wireless frequency: 433MHz
● Wireless distance: ≥1000m (open area)
● Working environment: temperature: 0 ~ 45 ℃; humidity: ≤80% RH
● Socket type: National standard small five holes
● Safety protection: child protection door
