Product
Detector

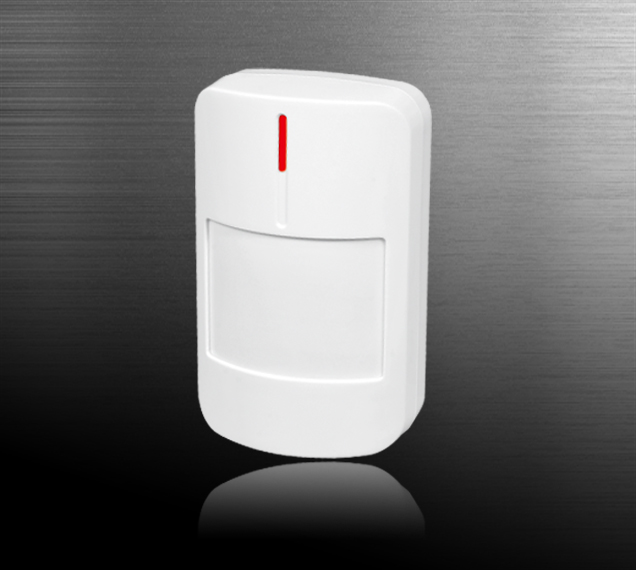

SK-166 Intelligent infrared detector
- Function Features
- Technical Reference
- Schematic Diagram
- Download
● Combination of micro power chip with advanced power saving technology and digital processing technology
● Cutting-edge wireless communication technology with long wireless transmission distance
● Intelligent detection of human and animal mobile intrusion
● Detection range curtain, wide angle optional
● Automatic temperature compensation, strong anti-false alarm
● Adjustable sensitivity
● Adopt SMD technology, anti-EMI, RFI interference
● Alarm indicator on / off optional
● With low-voltage detection alarm, anti-disassembly function
● Working voltage: DC3V (2 AA type 1.5V batteries)
● Current consumption: ≤40mA when alarm, ≤25uA when standby
● External power supply (optional): DC5V
● Detection space: wide angle 10 meters / 80 degrees, curtain 10 meters / 15 degrees
● Installation height: 2 ～ 2.5 meters
● Installation method: wall mount
● Ambient temperature: -10 ℃ ～ 50 ℃
● Alarm output: wireless output
● Transmitting frequency: 433M (optional for LORA communication)
● Transmission distance: ≤100m (open area)
