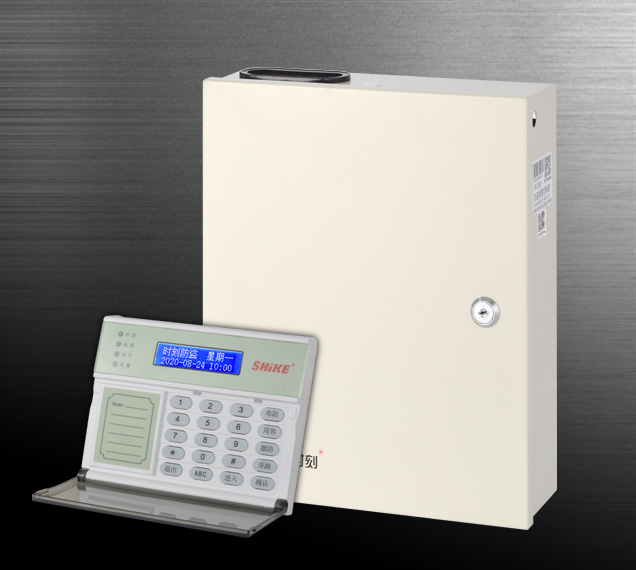

Internet + Alarm Controller
Professional Alarm System Controller
  • Function Features
  • Technical Reference
  • Schematic Diagram
  • Download

Feature:

1.Support 8 wired+99 wireless+32 bus system zones

2.PSTN,2G,4G,IP multiple network (add or delete),auto hook up on the best signal network send out message, avoid omission

3.Maximum linkage with 16 extra LCD keyboards and 16 remote controllers

4.Support select any single or several zones from all the zones built up a subarea

100 groups Arm/Disarm password for different user permissions

8 subarea individual control ,each subarea can be individual Arm /Disarm

5. Support linkage with HD camera, external siren, external LCD keyboard.

6.Timing Arm/Disarm

7. Different Way to Arm/Disarm : split keyboard /remote controller/APP/SMS

8.AC off, AC recover ,low battery, tamper, auto send alert information to APP, history record can be check.

9.Support alarm call voice recording ,will auto play it when user receive alarm call

10.Maximum restore 2K PCS events ,check by LCD keyboard

11.Optional 12V 7A Lithium battery can last device working over 12h when AC power off

12.Wreless detector low battery or lost ,will auto report to App

13.Support Bypass function ,one linkage output ,support 8 PCS of 8 zones linkage module .Each linkage module can individual control linkage output

Technical specifications:

Working voltage:220V/50Hz

DC: 12VDC/7AH

Main board Min power consumption :1.8W

Alarm Zones number:8 wired99 wireless +32 bus system zone

NetworkTCP/IP+2G/4G (call &SMS),PSTN is optional

Programsplit keyboard/SMS/APP

Wireless range315/433M

Siren interfaceDC13.6V/500mAautomatic protection function will close output interface when exceed 500mA

DC outputDC13.6V/1000mAautomatic protection function will close output interface when exceed 1000mA

Applicable temperature: +4°~ +60°

Applicable humidity:45%~95%
